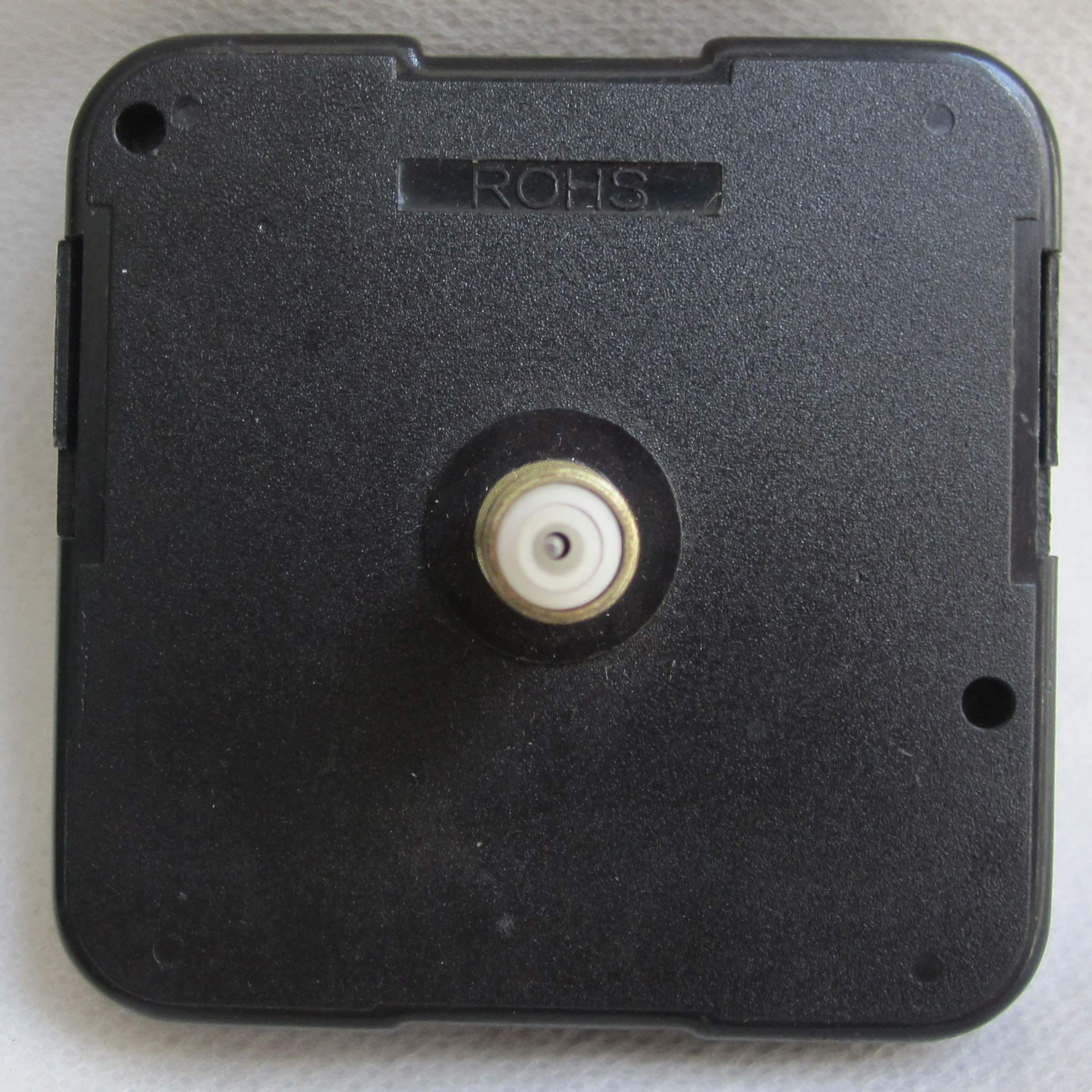

Quartz Clock Movement
Frequency: 32.768KHz (Quartz Oscillation)
Accuracy: +/- 2sec/day at 1.5V, 23°C
Operating Voltage: DC 1.25~1.70V
Operating Temperature: -10°C~50°C
Motor Type: Step motor
Output Frequency: 0.5Hz
Output Torque of Second Hand: ≥1.6gf•cm(1.5V)
Stard Operating Voltage: 1.5V
Battery Type: 1.5V AA size 1 piece
Battery Lift: about 1 year
Average Operating Current: ≤180~200μA at 1.5V
Shaft length: 7, 9, 11, 12, 13.5, 16, 18, 22mm
Accuracy: +/- 2sec/day at 1.5V, 23°C
Operating Voltage: DC 1.25~1.70V
Operating Temperature: -10°C~50°C
Motor Type: Step motor
Output Frequency: 0.5Hz
Output Torque of Second Hand: ≥1.6gf•cm(1.5V)
Stard Operating Voltage: 1.5V
Battery Type: 1.5V AA size 1 piece
Battery Lift: about 1 year
Average Operating Current: ≤180~200μA at 1.5V
Shaft length: 7, 9, 11, 12, 13.5, 16, 18, 22mm
Item number: M2188
Size: 5.6*5.6*1.6cm
Qty per carton: 500pcs/ctn
Carton size: 38*38*36.5cm
Volume: 0.053cbm
20ft Loading Qty: 264000 pcs
40ft Loading Qty: 547000 pcs
40HQ loading Qty: 641500 pcs
Production lead time: 35-55 days
Sample times: 3-5 days
